Pressed
The aesthetic properties of the pressed grating (available in galvanized steel or stainless steel), make it particularly suitable for civil uses with a low load capacity. It consists of bearing bars and cross bars embedded between these by means of a powerful pressing process. The bearing bar slots are performed via high-precision production lines and the cross beams – instead of being pressed – assume a permanent deformation.
Types of standard pressed gratings
- Standard
The pressed grating with flat cross bars ensures a stable grating, whilst also increasing the load capacity and ensuring good operating performance, in addition to providing a high aesthetic value.
- Serrated
The serrated pressed grating is mainly used in areas where there is a risk of slipping.
- Extra-Serrated
The extra-serrated pressed grating is created by using laminate or sheared bearing bars and cross bars with a surface consisting of suitably-shaped teeth. This particular combination has been designed to meet the accident prevention regulations, where a particular non-slip function is required. Recommended for any environments where liquids or oily substances are used.
- Heel-proof
The term “heel-proof” has no regulatory reference but is commonly used to define a grating that has bearing bars or cross bars with a centre-to-centre distance of 11 mm or less. It is usually used in the civil sector, wherever there is a high pedestrian footfall.

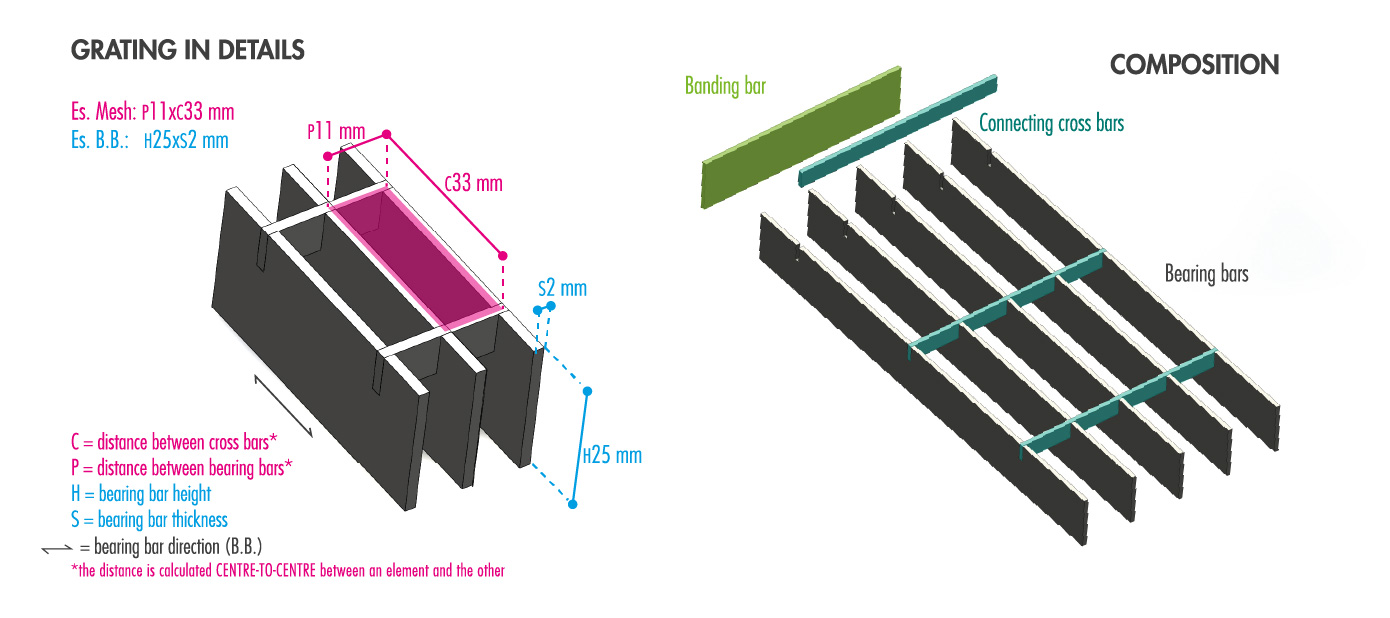

How to read a grating
Advantages
- Aesthetics: an aesthetically-pleasing line.
- Functionality: a large number of civil architecture applications.
- Wide range of mesh: can be made to order.
Bearing bar | Mesh 11x11 | Mesh 11x33 | Mesh 11x66 | CL1 | CL2 | CL3 | CL4 | |||
---|---|---|---|---|---|---|---|---|---|---|
(mm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) |
25 x 2 | 50,00 | 53,00 | 40,58 | 43,02 | 38,23 | 40,52 | 1335 | 369 | 264 | 199 |
25 x 3 | 67,86 | 71,94 | 58,44 | 61,95 | 56,09 | 59,45 | 1478 | 504 | 328 | 244 |
30 x 2 | 57,15 | 60,58 | 47,73 | 50,59 | 45,37 | 48,10 | 1531 | 488 | 321 | 239 |
30 x 3 | 78,58 | 83,29 | 69,16 | 73,31 | 66,80 | 70,81 | 1694 | 682 | 394 | 297 |
30 x 4 | 100,01 | 105,01 | 90,59 | 95,12 | 88,23 | 92,65 | 1821 | 877 | 459 | 350 |
40 x 2 | 71,44 | 75,72 | 62,02 | 65,74 | 59.66 | 63,24 | 1900 | 790 | 430 | 329 |
40 x 3 | 100,01 | 106,01 | 90,59 | 96,02 | 88,23 | 93,53 | 2102 | 1136 | 545 | 404 |
40 x 4 | 128,58 | 135,01 | 119,16 | 125,12 | 116,81 | 122,65 | 2259 | 1331 | 660 | 467 |
40 x 5 | 157,16 | 165,01 | 147,74 | 155,12 | 145,38 | 152,65 | 2389 | 1433 | 775 | 522 |
50 x 2 | 85,72 | 90,87 | 76,30 | 80,88 | 73,95 | 78,38 | 2246 | 1179 | 559 | 412 |
50 x 3 | 121,44 | 128,73 | 112.02 | 118,74 | 109.66 | 116,24 | 2485 | 1510 | 739 | 505 |
50 x 4 | 157,16 | 165,01 | 147,74 | 155,12 | 145,38 | 152,35 | 2671 | 1661 | 919 | 583 |
50 x 5 | 192,87 | 202,52 | 183,45 | 192,63 | 181,10 | 190,15 | 2824 | 1789 | 1099 | 655 |
60 x 3 | 142,87 | 151,44 | 133,45 | 141,46 | 131,10 | 138,96 | 2850 | 1811 | 977 | 606 |
60 x 4 | 185,73 | 195,02 | 176,31 | 185,13 | 173,96 | 182,65 | 3062 | 1992 | 1236 | 709 |
70 x 3 | 164,30 | 174,16 | 154,88 | 164,17 | 152,53 | 161,68 | 3199 | 2111 | 1257 | 717 |
70 x 4 | 214,31 | 225,02 | 204,89 | 215,13 | 202,53 | 212,66 | 3437 | 2323 | 1610 | 856 |
70 x 5 | 264,31 | 277,52 | 254,89 | 267,63 | 252,53 | 265,16 | 3635 | 2502 | 1748 | 995 |
80 x 3 | 203,59 | 215,81 | 182,39 | 193,34 | 177,10 | 187072 | 3536 | 2412 | 1581 | 845 |
80 x 4 | 260,74 | 273,77 | 239,54 | 251,52 | 234,24 | 245,96 | 3800 | 2655 | 1852 | 1027 |
80 x 5 | 317,89 | 333,78 | 296,69 | 311,53 | 291,39 | 305,96 | 4018 | 2859 | 1994 | 1208 |
90 x 3 | 225,02 | 238,52 | 203,83 | 216,05 | 198,53 | 210,44 | 3862 | 2713 | 1893 | 990 |
90 x 4 | 289,31 | 303,78 | 268,12 | 281,52 | 262,82 | 275,96 | 4151 | 2986 | 2081 | 1220 |
90 x 5 | 363,60 | 371,28 | 332,41 | 349,03 | 327,11 | 343,46 | 4389 | 3216 | 2240 | 1450 |
100 x 3 | 246,45 | 261,24 | 225,26 | 238,77 | 219,96 | 233,15 | 4180 | 3014 | 2100 | 1152 |
100 x 4 | 317,89 | 333,78 | 296,69 | 311,53 | 291,39 | 305,96 | 4492 | 3317 | 2310 | 1436 |
100 x 5 | 389,32 | 408,79 | 368,13 | 386,53 | 362,83 | 380,97 | 4750 | 3573 | 2486 | 1720 |
110 x 4 | 346,46 | 363,78 | 325,26 | 241,53 | 319,97 | 335,96 | 4825 | 3649 | 2539 | 1674 |
110 x 5 | 425,04 | 446,29 | 403,84 | 424,04 | 398,54 | 418,47 | 5102 | 3930 | 2733 | 2018 |
**Load Bearing classes refers to the clean light between placements, i.e. the distance between one support and the other. |
Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Bearing bar | Mesh 22x11 | Mesh 22x33 | Mesh 22x66 | CL1 | CL2 | CL3 | CL4 | |||
---|---|---|---|---|---|---|---|---|---|---|
(mm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Raw (kg/mqsqm | Galvanized (kg/sqm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) |
25 x 2 | 32,34 | 34,28 | 22,92 | 24,30 | 20,57 | 21,80 | 1123 | 252 | 187 | 144 |
25 x 3 | 41,37 | 43,85 | 31,95 | 33,87 | 29,59 | 31,37 | 1242 | 329 | 232 | 177 |
30 x 2 | 35,95 | 38,11 | 26,53 | 28,12 | 24,18 | 25,63 | 1287 | 320 | 227 | 173 |
30 x 3 | 46,79 | 49,59 | 37,37 | 39,61 | 35,01 | 37,11 | 1425 | 430 | 290 | 212 |
30 x 4 | 57,62 | 60,50 | 48.20 | 50,61 | 45,84 | 48,14 | 1531 | 540 | 342 | 245 |
40 x 2 | 43,18 | 45,77 | 33,76 | 35,78 | 31,40 | 33,28 | 1597 | 491 | 323 | 231 |
40 x 3 | 57,62 | 61,08 | 48,20 | 51,09 | 45,84 | 48,59 | 1768 | 687 | 395 | 285 |
40 x 4 | 72,06 | 75,6 | 62,64 | 65,78 | 60,29 | 63,30 | 1900 | 883 | 461 | 339 |
40 x 5 | 86,51 | 90,83 | 77,09 | 80,94 | 74,73 | 78,47 | 2009 | 1078 | 526 | 389 |
50 x 2 | 50,40 | 53,42 | 40,98 | 43,44 | 38,62 | 40,94 | 1888 | 711 | 403 | 292 |
50 x 3 | 68,45 | 72,56 | 59,03 | 62,57 | 56,68 | 60,08 | 2090 | 1017 | 505 | 376 |
50 x 4 | 86,51 | 90,83 | 77,09 | 80,94 | 74,73 | 78,47 | 2246 | 1323 | 607 | 435 |
50 x 5 | 104,56 | 109,79 | 95,14 | 99,90 | 92,79 | 97,43 | 2375 | 1482 | 709 | 486 |
60 x 3 | 79,29 | 84,04 | 67,87 | 74,06 | 67,51 | 71,56 | 2396 | 1421 | 640 | 452 |
60 x 4 | 100,95 | 106,00 | 91,53 | 96,11 | 89,18 | 93,63 | 2575 | 1650 | 787 | 522 |
70 x 3 | 90,12 | 95,53 | 80,70 | 85,54 | 78,34 | 83,04 | 2690 | 1748 | 799 | 528 |
70 x 4 | 115,40 | 121,16 | 105,98 | 111,27 | 103,62 | 108,80 | 2890 | 1924 | 999 | 609 |
70 x 5 | 140,67 | 147,71 | 131,25 | 137,81 | 128,90 | 135,34 | 3056 | 2072 | 1199 | 687 |
80 x 3 | 118,81 | 125,94 | 97,61 | 103,47 | 92,32 | 97,85 | 2973 | 1997 | 983 | 603 |
80 x 4 | 147,70 | 155,08 | 126,50 | 132,83 | 121.20 | 127.26 | 3195 | 2198 | 1244 | 704 |
80 x 5 | 176,59 | 185,42 | 155,39 | 163,16 | 150,09 | 157,60 | 3378 | 2367 | 1505 | 805 |
90 x 3 | 129,64 | 137,42 | 108,45 | 114,95 | 103,15 | 109,34 | 3248 | 2246 | 1191 | 684 |
90 x 4 | 162,14 | 170,25 | 140,95 | 147,99 | 135,65 | 142,43 | 3490 | 2472 | 1521 | 812 |
90 x 5 | 194,64 | 204,37 | 173,45 | 182,12 | 168,15 | 176,55 | 3690 | 2662 | 1851 | 940 |
100 x 3 | 140,48 | 148,90 | 119,28 | 126,44 | 113,98 | 120,82 | 3515 | 2495 | 1423 | 774 |
100 x 4 | 176,59 | 185,42 | 155,39 | 163,16 | 150,09 | 157,60 | 3777 | 2746 | 1831 | 932 |
100 x 5 | 212,70 | 223,33 | 191,50 | 201,08 | 186,20 | 195,51 | 3994 | 2958 | 2061 | 1090 |
110 x 4 | 191,03 | 200,58 | 169,83 | 178,33 | 164,54 | 172,76 | 4057 | 3020 | 2105 | 1064 |
110 x 5 | 230,75 | 242,29 | 209,56 | 220.03 | 204,26 | 214,47 | 4290 | 3253 | 2265 | 1256 |
**Load Bearing classes refers to the clean light between placements, i.e. the distance between one support and the other. |
Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Bearing bar | Mesh 33x11 | Mesh 33x33 | Mesh 33x66[ | CL1 | CL2 | CL3 | CL4 | |||
---|---|---|---|---|---|---|---|---|---|---|
(mm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) |
25 x 2 | 26,45 | 28,04 | 17,03 | 187,06 | 14,68 | 15,56 | 1014 | 208 | 156 | 119 |
25 x 3 | 32,54 | 34,49 | 23,12 | 24,51 | 20,76 | 22,01 | 1123 | 262 | 191 | 146 |
30 x 2 | 28,89 | 30,62 | 19,47 | 20,64 | 17,11 | 18,14 | 1163 | 255 | 187 | 143 |
30 x 3 | 36,19 | 38,36 | 26,77 | 28,37 | 24,41 | 25,88 | 1287 | 333 | 231 | 175 |
30 x 4 | 41,49 | 45,66 | 34,07 | 35,77 | 31,71 | 33,30 | 1383 | 411 | 275 | 202 |
40 x 2 | 33,76 | 35,78 | 24,34 | 25,80 | 21,98 | 23,30 | 1443 | 376 | 255 | 191 |
40 x 3 | 43,49 | 46,10 | 34,07 | 36,11 | 31,71 | 33,62 | 1597 | 515 | 332 | 234 |
40 x 4 | 53,22 | 55,88 | 43,80 | 45,99 | 41,45 | 43,52 | 1716 | 653 | 384 | 271 |
40 x 5 | 62,96 | 66,10 | 53,54 | 56,21 | 51,18 | 53,74 | 1815 | 792 | 430 | 308 |
50 x 2 | 38,62 | 40,94 | 29,20 | 30,95 | 26,85 | 28,46 | 1706 | 532 | 339 | 239 |
50 x 3 | 50,79 | 53,84 | 41,37 | 43,85 | 39,01 | 41,36 | 1888 | 749 | 416 | 296 |
50 x 4 | 62,96 | 66,10 | 53,54 | 56,21 | 51,18 | 53,74 | 2029 | 965 | 488 | 353 |
50 x 5 | 75,12 | 78,88 | 65,70 | 68,99 | 63,35 | 66.52 | 2146 | 1181 | 560 | 401 |
60 x 3 | 58,09 | 61,58 | 48,67 | 51,59 | 43,32 | 49,09 | 2165 | 1034 | 511 | 372 |
60 x 4 | 72,69 | 76,33 | 63,27 | 66,43 | 60,92 | 63,96 | 2327 | 1346 | 615 | 430 |
70 x 3 | 65,39 | 69,31 | 55,97 | 59,33 | 53,62 | 56,83 | 2430 | 1372 | 624 | 434 |
70 x 4 | 82,43 | 86,55 | 73,01 | 76,66 | 70,65 | 74,18 | 2612 | 1715 | 765 | 502 |
70 x 5 | 99,46 | 104,43 | 90,04 | 94,54 | 87,68 | 92,07 | 2762 | 1847 | 906 | 561 |
80 x 3 | 90,55 | 95,98 | 69,35 | 73,52 | 64,06 | 67,90 | 2687 | 1761 | 753 | 496 |
80 x 4 | 110,02 | 115,52 | 88,42 | 93,26 | 83,52 | 87,70 | 2887 | 1959 | 938 | 573 |
80 x 5 | 129,49 | 135,96 | 108,29 | 113,71 | 102,99 | 108,14 | 3053 | 2110 | 1123 | 643 |
90 x 3 | 97,85 | 103,72 | 76,66 | 81,25 | 71,36 | 75,64 | 2935 | 2002 | 900 | 559 |
90 x 4 | 119,75 | 125,74 | 98,56 | 103,48 | 93,26 | 97,92 | 3154 | 2203 | 1134 | 647 |
90 x 5 | 141,65 | 148,74 | 120,46 | 126,48 | 115,16 | 120,92 | 3335 | 2373 | 1368 | 734 |
100 x 3 | 105,15 | 111,46 | 83,96 | 88,99 | 78,66 | 83,38 | 3176 | 2224 | 1065 | 621 |
100 x 4 | 129,49 | 135,96 | 108,29 | 113,71 | 102,99 | 108,14 | 3413 | 2447 | 1353 | 728 |
100 x 5 | 153,82 | 161,51 | 132,63 | 139,26 | 127,33 | 133,69 | 3609 | 2636 | 1642 | 836 |
110 x 4 | 139,22 | 146,18 | 118,02 | 123,93 | 112,73 | 118,36 | 3666 | 2691 | 1596 | 818 |
110 x 5 | 165,99 | 174,29 | 144,79 | 152,03 | 139,49 | 146,47 | 3876 | 2899 | 1945 | 948 |
**Load Bearing classes refers to the clean light between placements, i.e. the distance between one support and the other. |
Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Bearing bar | Mesh 44x11 | Mesh 44x33 | Mesh 44x66 | CL1 | CL2 | CL3 | CL4 | |||
---|---|---|---|---|---|---|---|---|---|---|
(mm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Raw (kg/sqm) | Galvanized (kg/sqm) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) |
25 x 2 | 23,31 | 24,71 | 13,89 | 14,73 | 11,54 | 12,23 | 926 | 179 | 138 | 103 |
25 x 3 | 27,83 | 29,50 | 18,41 | 19,51 | 16,05 | 17,02 | 1045 | 221 | 169 | 126 |
30 x 2 | 25,12 | 26,63 | 15,70 | 16,64 | 13,35 | 14,15 | 1082 | 216 | 165 | 124 |
30 x 3 | 30,54 | 32,37 | 21,12 | 22,38 | 18,76 | 19,89 | 1198 | 274 | 202 | 152 |
30 x 4 | 35,95 | 37,75 | 26,53 | 27,86 | 24,18 | 25,39 | 1287 | 332 | 237 | 175 |
40 x 2 | 28,73 | 30,45 | 19,31 | 20,47 | 16,96 | 17,97 | 1343 | 306 | 222 | 165 |
40 x 3 | 35,95 | 38,11 | 26,53 | 28,12 | 24,18 | 25,63 | 1486 | 410 | 283 | 202 |
40 x 4 | 43,18 | 45,33 | 33,76 | 35,44 | 31,40 | 32,97 | 1597 | 513 | 332 | 234 |
40 x 5 | 50,40 | 52,92 | 40,98 | 43,03 | 38,62 | 40,55 | 1689 | 617 | 371 | 262 |
50 x 2 | 32,34 | 34,28 | 22,92 | 24,30 | 20,57 | 21,80 | 1588 | 423 | 290 | 206 |
50 x 3 | 41,37 | 43,85 | 31,95 | 33,87 | 29,59 | 31,37 | 1757 | 584 | 359 | 253 |
50 x 4 | 50,40 | 52,92 | 40,98 | 43,03 | 38,62 | 40,55 | 1888 | 746 | 415 | 296 |
50 x 5 | 59,42 | 62,40 | 50,00 | 52,50 | 47,65 | 50,03 | 1997 | 908 | 469 | 339 |
60 x 3 | 46,79 | 49,59 | 37,37 | 39,61 | 35,01 | 37,11 | 2015 | 798 | 432 | 310 |
60 x 4 | 57,62 | 60,50 | 48,20 | 50,61 | 45,84 | 48,14 | 2165 | 1031 | 510 | 371 |
70 x 3 | 52,20 | 55,33 | 42,78 | 45,35 | 40,43 | 42,85 | 2262 | 1050 | 516 | 376 |
70 x 4 | 64,84 | 68,08 | 55,42 | 58,19 | 53,07 | 55,72 | 2430 | 1367 | 622 | 441 |
70 x 5 | 77,48 | 81,35 | 68,06 | 71,46 | 65.70 | 68,99 | 2570 | 1676 | 728 | 493 |
80 x 3 | 75,48 | 80,01 | 54,28 | 57,54 | 48,98 | 51,92 | 2500 | 1341 | 613 | 437 |
80 x 4 | 89,92 | 94,42 | 68,73 | 72,16 | 63,43 | 66,60 | 2687 | 1755 | 751 | 504 |
80 x 5 | 104,37 | 109,58 | 83,17 | 87,33 | 77,87 | 81,77 | 2841 | 1915 | 889 | 564 |
90 x 3 | 80,89 | 85,75 | 59,70 | 63,28 | 54,40 | 5,66 | 2731 | 1671 | 723 | 491 |
90 x 4 | 97,14 | 102,00 | 75,95 | 79,75 | 70,65 | 74,18 | 2935 | 1999 | 898 | 567 |
90 x 5 | 113,39 | 119,06 | 92,20 | 96,81 | 86,90 | 91,24 | 3103 | 2153 | 1072 | 635 |
100 x 3 | 86,31 | 91,49 | 65,12 | 69,02 | 59,82 | 63,41 | 2956 | 2018 | 846 | 546 |
100 x 4 | 104,37 | 109,58 | 83,17 | 87,33 | 77,87 | 81,77 | 3176 | 2221 | 1062 | 631 |
100 x 5 | 122,42 | 128,54 | 101,23 | 106,29 | 95,93 | 100,72 | 3358 | 2392 | 1277 | 714 |
110 x 4 | 111,59 | 117,17 | 90,39 | 94,91 | 85,09 | 89,35 | 3411 | 2443 | 1243 | 701 |
110 x 5 | 131,45 | 138,02 | 110,25 | 115,77 | 104,95 | 110,20 | 3607 | 2631 | 1503 | 801 |
**Load Bearing classes refers to the clean light between placements, i.e. the distance between one support and the other. |
Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Bearing bar | Mesh 66x11 | Mesh 66x33 | Mesh 66x66 | CL1 | CL2 | CL3 | CL4 | |||
---|---|---|---|---|---|---|---|---|---|---|
(mm) | Raw (kg/mq) | Galvanized (kg/mq) | Raw (kg/mq) | Galvanized (kg/mq) | Raw (kg/mq) | Galvanized (kg/mq) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) | Clean light (mm**) |
25 x 2 | 20,57 | 21,80 | 11,15 | 11,82 | 8,79 | 9,32 | 792 | 162 | 117 | 88 |
25 x 3 | 23,71 | 25,13 | 14,29 | 15,14 | 11,93 | 12,65 | 926 | 198 | 143 | 108 |
30 x 2 | 21,82 | 23,13 | 12,40 | 13,15 | 10,65 | 10,65 | 950 | 194 | 140 | 106 |
30 x 3 | 25,59 | 27,13 | 16,17 | 17,14 | 13,82 | 14,64 | 1082 | 242 | 172 | 129 |
30 x 4 | 29,36 | 30,83 | 19,94 | 20,94 | 17,58 | 18,46 | 1163 | 289 | 199 | 149 |
40 x 2 | 24,34 | 25,80 | 14,92 | 15,81 | 12,56 | 13,31 | 1214 | 268 | 187 | 141 |
40 x 3 | 29,36 | 31,12 | 19,94 | 21,14 | 17,58 | 18,64 | 1343 | 353 | 232 | 173 |
40 x 4 | 34,38 | 36,10 | 24,96 | 26,21 | 22,61 | 23,74 | 1443 | 437 | 276 | 199 |
40 x 5 | 39,41 | 41,38 | 29,99 | 31,49 | 27,63 | 29,01 | 1526 | 521 | 320 | 223 |
50 x 2 | 26,85 | 28,46 | 17,43 | 18,47 | 15,07 | 15,98 | 1435 | 363 | 237 | 176 |
50 x 3 | 33,13 | 35,11 | 23,71 | 25,13 | 21,35 | 22,63 | 1588 | 495 | 306 | 216 |
50 x 4 | 39,41 | 41,38 | 29,99 | 31,49 | 27,63 | 29,01 | 1706 | 627 | 374 | 249 |
50 x 5 | 45,69 | 47,97 | 36,27 | 38,08 | 33,91 | 35,61 | 1804 | 758 | 419 | 281 |
60 x 3 | 36,90 | 39,11 | 27,48 | 29,12 | 25,12 | 26,63 | 1821 | 669 | 389 | 259 |
60 x 4 | 44,43 | 46,65 | 35,01 | 36,76 | 32,66 | 34,29 | 1956 | 859 | 453 | 304 |
70 x 3 | 40,66 | 43,10 | 31,24 | 33,12 | 28,89 | 30,62 | 2044 | 874 | 458 | 308 |
70 x 4 | 49,46 | 51,93 | 40,04 | 42,04 | 37,68 | 39,56 | 2196 | 1133 | 544 | 369 |
70 x 5 | 58,25 | 61,16 | 48,83 | 51,27 | 46,47 | 48,80 | 2322 | 1391 | 630 | 414 |
80 x 3 | 62,29 | 66,03 | 41,09 | 43,56 | 35,80 | 37,94 | 2259 | 1112 | 537 | 364 |
80 x 4 | 72,34 | 75,95 | 51,14 | 53,70 | 45,84 | 48,14 | 2428 | 1449 | 649 | 424 |
80 x 5 | 82,39 | 86,51 | 61,19 | 64,25 | 55,89 | 58,69 | 2567 | 1787 | 762 | 474 |
90 x 3 | 66,06 | 70,02 | 44,86 | 47,55 | 39,56 | 41,94 | 2468 | 1381 | 627 | 413 |
90 x 4 | 77,36 | 81,23 | 56,17 | 58,98 | 50,87 | 53,41 | 2652 | 1808 | 769 | 477 |
90 x 5 | 88,67 | 93,10 | 67,47 | 70,84 | 62,17 | 65,28 | 2804 | 2012 | 911 | 533 |
100 x 3 | 69,83 | 74,02 | 48,63 | 51,55 | 43,33 | 45,93 | 2671 | 1681 | 727 | 459 |
100 x 4 | 82,39 | 86,51 | 61,19 | 64,25 | 55,89 | 58,69 | 2870 | 2075 | 902 | 530 |
100 x 5 | 94,95 | 99,69 | 73,75 | 77,44 | 68,45 | 71,87 | 3035 | 2235 | 1078 | 592 |
110 x 4 | 87,41 | 91,78 | 66,21 | 69,53 | 60,92 | 63,96 | 3083 | 2282 | 1050 | 583 |
110 x 5 | 101,23 | 106,29 | 80,03 | 84,03 | 74,73 | 78,47 | 3259 | 2458 | 1263 | 654 |
**Load Bearing classes refers to the clean light between placements, i.e. the distance between one support and the other. |
Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln

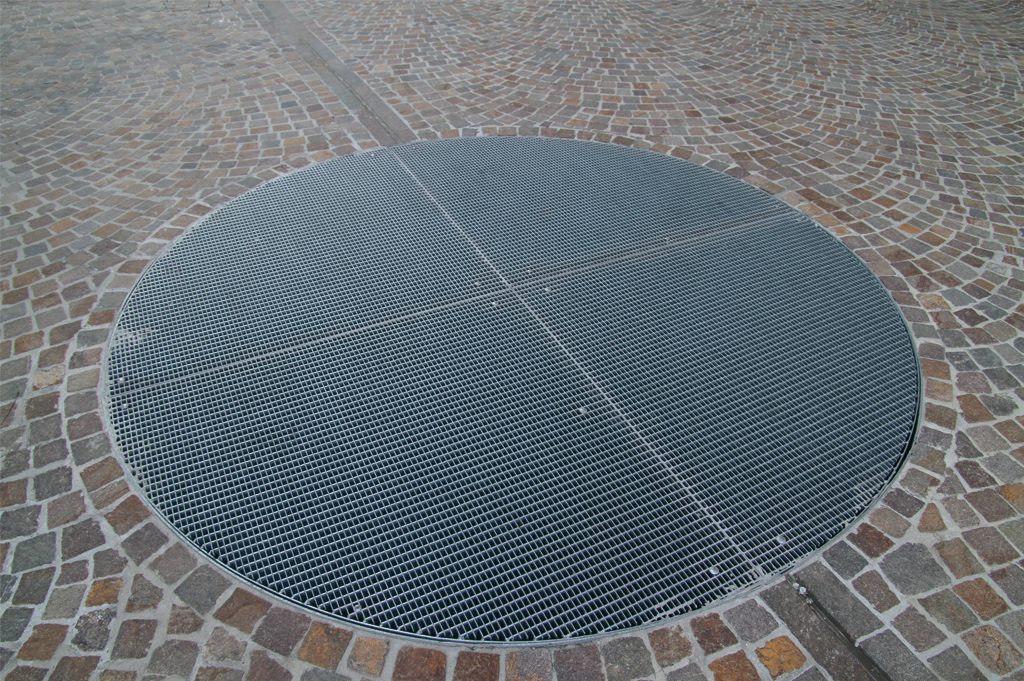

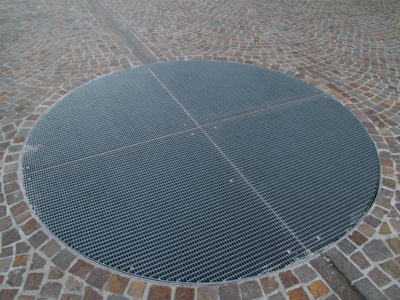

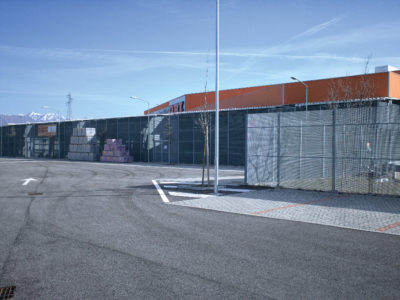

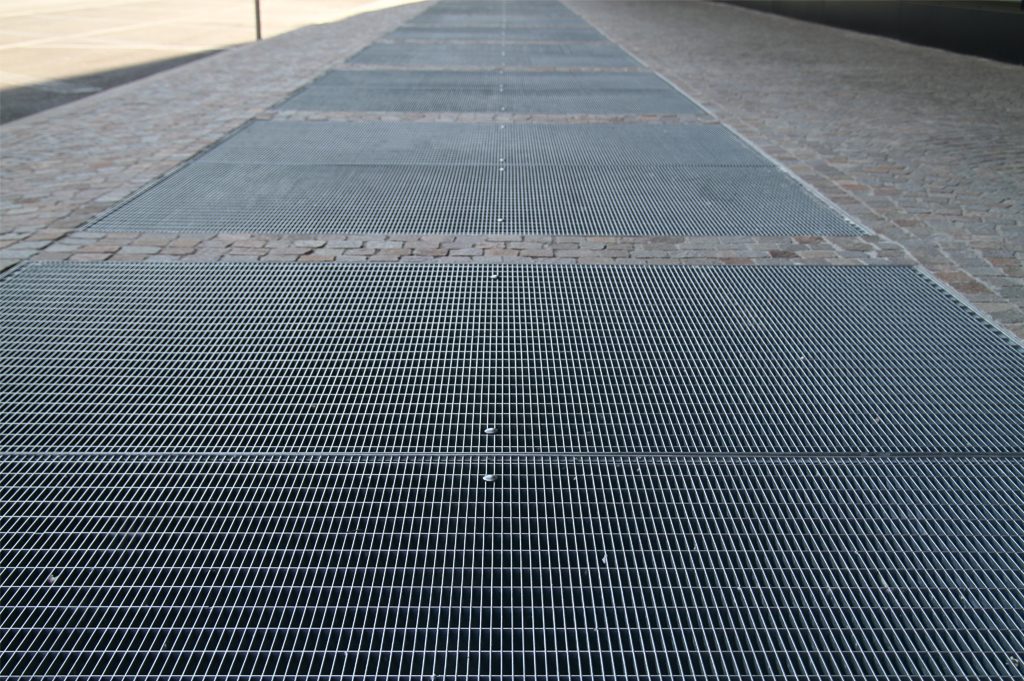

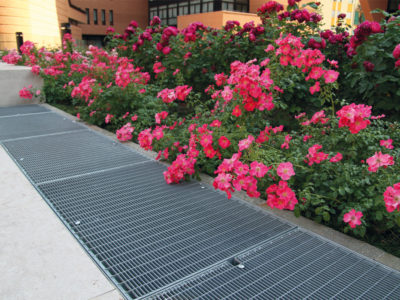

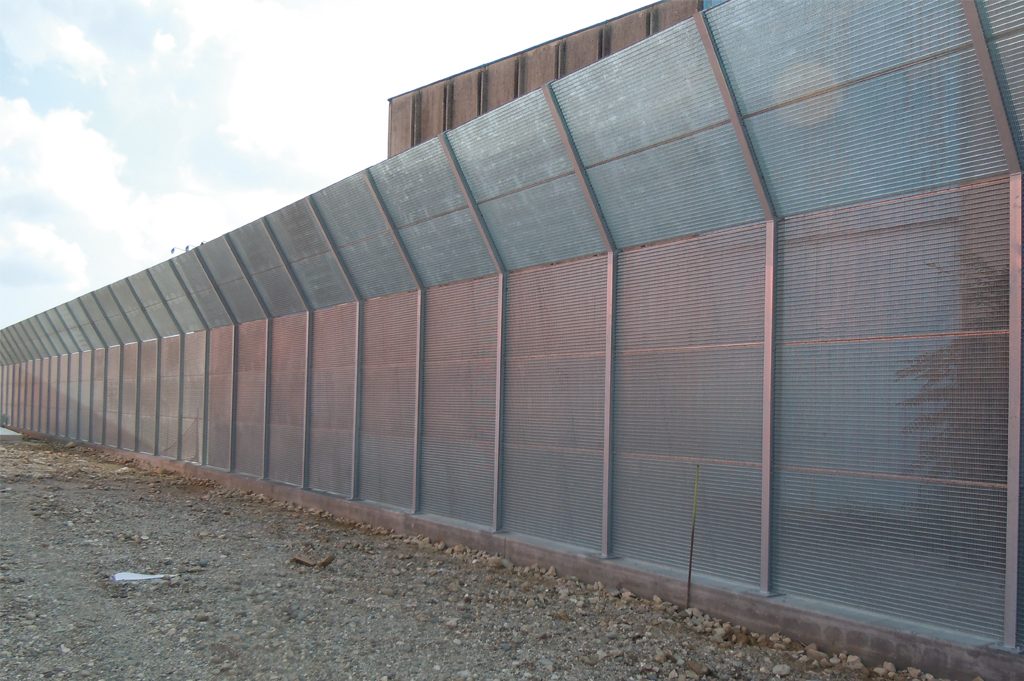

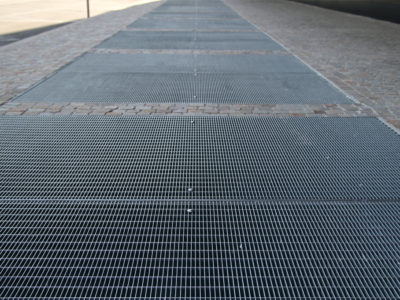

Baldassar Pressed Grating, M. 33 x 11 mm, B.B. 25 x 2 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 66 x 11 mm, B.B. 30 x 2 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 33 x 11 mm, B.B. 25 x 2 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 66 x 11 mm, B.B. 30 x 2 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 66 x 11 mm, B.B. 100 x 3 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 33 x 11 mm, B.B. 25 x 2 mm, S235JR steel. Cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.

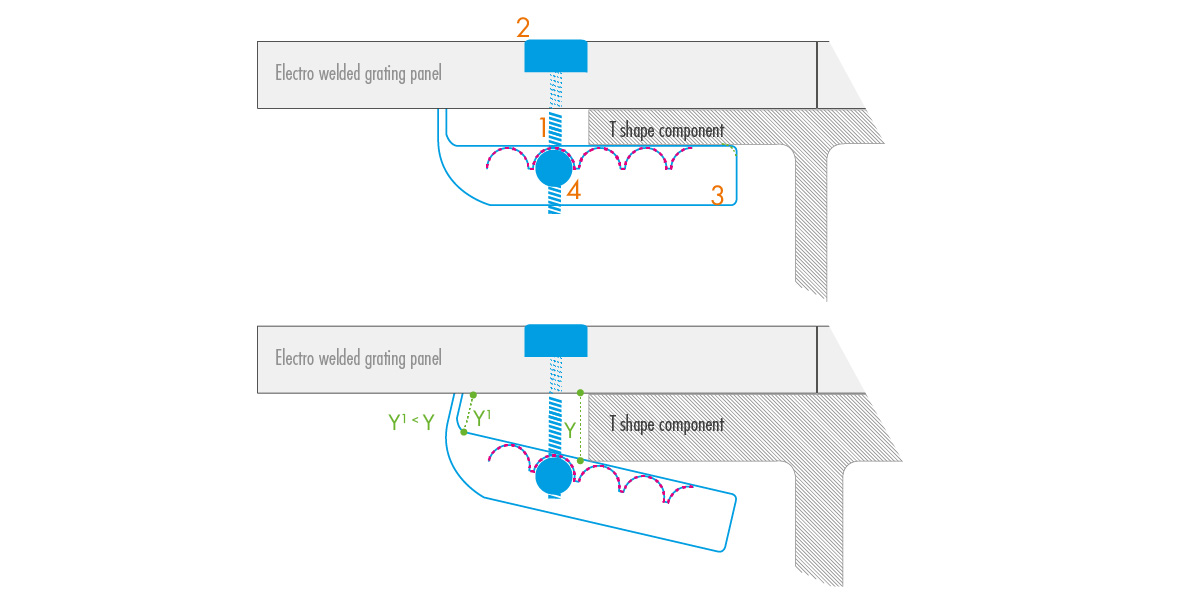

Tank Patented Grating Clamp
1. Traction screw 2. M-shaped clamp 3. Patented grating clamp 4. Standard lock nut 5. Special lock nut
Thanks to its special shape, this fixing system ensures the stability of the grating panels, even when subject to high levels of stress.
The special shaping allows the traction screw to be inserted perpendicularly to the electro-welded grating panel, even when in unachievable positions.
Standard Grating Clamp
Galvanised grating clamp for 11-15 mm mesh
Galvanised grating clamp for 21-25 mm mesh
Galvanised grating clamp for 30-34 mm mesh
Galvanised double grating clamp for 11-15 mm mesh
Galvanised double grating clamp for 21-25 mm mesh
Galvanised double grating clamp for 30-34 mm mesh
Corner Bars
Hot-dip galvanised corner bar (30x30x3/35x35x3/45x45x4) with a 2000 mm/3000 mm anchor
Hot-dip galvanised screw-on corner bar (30x30x3/35x35x3/45x45x4) – 2000 mm/3000 mm
Anti-Theft Kit
Anti-theft kit for electro-welded grates
Anti-theft kit for heel-proof grates
Shaping
Each building and every situation has different shapes and needs. It is for this reason that Baldassar has established a specialised technical department to be able to create products with special shapes and patterns. Thanks to the shaping process, each grating element can have the most suitable contour for an easier insertion and installation, with minimum waste material.
Banding
As a result of the banding process, the grating panel can have various standard finishes or be designed according to the customer’s design, such as with round, bevelled, square or shaped bands. This deformation process is fully designed and performed inside the Baldassar premises.
Calendering
Thanks to the cutting-edge equipment, our technical department is able to deform the metal profiles according to specific designs, by giving it a circular curvature. The process is carried out in-house; therefore, there is no need to wait for third-parties to be carry out this process.
- + Description
-
Pressed
The aesthetic properties of the pressed grating (available in galvanized steel or stainless steel), make it particularly suitable for civil uses with a low load capacity. It consists of bearing bars and cross bars embedded between these by means of a powerful pressing process. The bearing bar slots are performed via high-precision production lines and the cross beams – instead of being pressed – assume a permanent deformation.
- + Characteristics
-
Types of standard pressed gratings
- Standard
The pressed grating with flat cross bars ensures a stable grating, whilst also increasing the load capacity and ensuring good operating performance, in addition to providing a high aesthetic value.
- Serrated
The serrated pressed grating is mainly used in areas where there is a risk of slipping.
- Extra-Serrated
The extra-serrated pressed grating is created by using laminate or sheared bearing bars and cross bars with a surface consisting of suitably-shaped teeth. This particular combination has been designed to meet the accident prevention regulations, where a particular non-slip function is required. Recommended for any environments where liquids or oily substances are used.
- Heel-proof
The term “heel-proof” has no regulatory reference but is commonly used to define a grating that has bearing bars or cross bars with a centre-to-centre distance of 11 mm or less. It is usually used in the civil sector, wherever there is a high pedestrian footfall.
How to read a grating
Advantages
- Aesthetics: an aesthetically-pleasing line.
- Functionality: a large number of civil architecture applications.
- Wide range of mesh: can be made to order.
- + Meshes and Load Classes
-
11 mesh
Bearing bar Mesh 11x11 Mesh 11x33 Mesh 11x66 CL1 CL2 CL3 CL4 (mm) Raw (kg/sqm) Galvanized (kg/sqm) Raw (kg/sqm) Galvanized (kg/sqm) Raw (kg/sqm) Galvanized (kg/sqm) Clean light (mm**) Clean light (mm**) Clean light (mm**) Clean light (mm**) 25 x 2 50,00 53,00 40,58 43,02 38,23 40,52 1335 369 264 199 25 x 3 67,86 71,94 58,44 61,95 56,09 59,45 1478 504 328 244 30 x 2 57,15 60,58 47,73 50,59 45,37 48,10 1531 488 321 239 30 x 3 78,58 83,29 69,16 73,31 66,80 70,81 1694 682 394 297 30 x 4 100,01 105,01 90,59 95,12 88,23 92,65 1821 877 459 350 40 x 2 71,44 75,72 62,02 65,74 59.66 63,24 1900 790 430 329 40 x 3 100,01 106,01 90,59 96,02 88,23 93,53 2102 1136 545 404 40 x 4 128,58 135,01 119,16 125,12 116,81 122,65 2259 1331 660 467 40 x 5 157,16 165,01 147,74 155,12 145,38 152,65 2389 1433 775 522 50 x 2 85,72 90,87 76,30 80,88 73,95 78,38 2246 1179 559 412 50 x 3 121,44 128,73 112.02 118,74 109.66 116,24 2485 1510 739 505 50 x 4 157,16 165,01 147,74 155,12 145,38 152,35 2671 1661 919 583 50 x 5 192,87 202,52 183,45 192,63 181,10 190,15 2824 1789 1099 655 60 x 3 142,87 151,44 133,45 141,46 131,10 138,96 2850 1811 977 606 60 x 4 185,73 195,02 176,31 185,13 173,96 182,65 3062 1992 1236 709 70 x 3 164,30 174,16 154,88 164,17 152,53 161,68 3199 2111 1257 717 70 x 4 214,31 225,02 204,89 215,13 202,53 212,66 3437 2323 1610 856 70 x 5 264,31 277,52 254,89 267,63 252,53 265,16 3635 2502 1748 995 80 x 3 203,59 215,81 182,39 193,34 177,10 187072 3536 2412 1581 845 80 x 4 260,74 273,77 239,54 251,52 234,24 245,96 3800 2655 1852 1027 80 x 5 317,89 333,78 296,69 311,53 291,39 305,96 4018 2859 1994 1208 90 x 3 225,02 238,52 203,83 216,05 198,53 210,44 3862 2713 1893 990 90 x 4 289,31 303,78 268,12 281,52 262,82 275,96 4151 2986 2081 1220 90 x 5 363,60 371,28 332,41 349,03 327,11 343,46 4389 3216 2240 1450 100 x 3 246,45 261,24 225,26 238,77 219,96 233,15 4180 3014 2100 1152 100 x 4 317,89 333,78 296,69 311,53 291,39 305,96 4492 3317 2310 1436 100 x 5 389,32 408,79 368,13 386,53 362,83 380,97 4750 3573 2486 1720 110 x 4 346,46 363,78 325,26 241,53 319,97 335,96 4825 3649 2539 1674 110 x 5 425,04 446,29 403,84 424,04 398,54 418,47 5102 3930 2733 2018 **Load Bearing classes refers to the clean light between placements, i.e. the
distance between one support and the other.Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
22 meshBearing bar Mesh 22x11 Mesh 22x33 Mesh 22x66 CL1 CL2 CL3 CL4 (mm) Raw (kg/sqm) Galvanized (kg/sqm) Raw (kg/mqsqm Galvanized (kg/sqm) Raw (kg/sqm) Galvanized (kg/sqm) Clean light (mm**) Clean light (mm**) Clean light (mm**) Clean light (mm**) 25 x 2 32,34 34,28 22,92 24,30 20,57 21,80 1123 252 187 144 25 x 3 41,37 43,85 31,95 33,87 29,59 31,37 1242 329 232 177 30 x 2 35,95 38,11 26,53 28,12 24,18 25,63 1287 320 227 173 30 x 3 46,79 49,59 37,37 39,61 35,01 37,11 1425 430 290 212 30 x 4 57,62 60,50 48.20 50,61 45,84 48,14 1531 540 342 245 40 x 2 43,18 45,77 33,76 35,78 31,40 33,28 1597 491 323 231 40 x 3 57,62 61,08 48,20 51,09 45,84 48,59 1768 687 395 285 40 x 4 72,06 75,6 62,64 65,78 60,29 63,30 1900 883 461 339 40 x 5 86,51 90,83 77,09 80,94 74,73 78,47 2009 1078 526 389 50 x 2 50,40 53,42 40,98 43,44 38,62 40,94 1888 711 403 292 50 x 3 68,45 72,56 59,03 62,57 56,68 60,08 2090 1017 505 376 50 x 4 86,51 90,83 77,09 80,94 74,73 78,47 2246 1323 607 435 50 x 5 104,56 109,79 95,14 99,90 92,79 97,43 2375 1482 709 486 60 x 3 79,29 84,04 67,87 74,06 67,51 71,56 2396 1421 640 452 60 x 4 100,95 106,00 91,53 96,11 89,18 93,63 2575 1650 787 522 70 x 3 90,12 95,53 80,70 85,54 78,34 83,04 2690 1748 799 528 70 x 4 115,40 121,16 105,98 111,27 103,62 108,80 2890 1924 999 609 70 x 5 140,67 147,71 131,25 137,81 128,90 135,34 3056 2072 1199 687 80 x 3 118,81 125,94 97,61 103,47 92,32 97,85 2973 1997 983 603 80 x 4 147,70 155,08 126,50 132,83 121.20 127.26 3195 2198 1244 704 80 x 5 176,59 185,42 155,39 163,16 150,09 157,60 3378 2367 1505 805 90 x 3 129,64 137,42 108,45 114,95 103,15 109,34 3248 2246 1191 684 90 x 4 162,14 170,25 140,95 147,99 135,65 142,43 3490 2472 1521 812 90 x 5 194,64 204,37 173,45 182,12 168,15 176,55 3690 2662 1851 940 100 x 3 140,48 148,90 119,28 126,44 113,98 120,82 3515 2495 1423 774 100 x 4 176,59 185,42 155,39 163,16 150,09 157,60 3777 2746 1831 932 100 x 5 212,70 223,33 191,50 201,08 186,20 195,51 3994 2958 2061 1090 110 x 4 191,03 200,58 169,83 178,33 164,54 172,76 4057 3020 2105 1064 110 x 5 230,75 242,29 209,56 220.03 204,26 214,47 4290 3253 2265 1256 **Load Bearing classes refers to the clean light between placements, i.e. the
distance between one support and the other.Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
33 meshBearing bar Mesh 33x11 Mesh 33x33 Mesh 33x66[ CL1 CL2 CL3 CL4 (mm) Raw (kg/sqm) Galvanized (kg/sqm) Raw (kg/sqm) Galvanized (kg/sqm) Raw (kg/sqm) Galvanized (kg/sqm) Clean light (mm**) Clean light (mm**) Clean light (mm**) Clean light (mm**) 25 x 2 26,45 28,04 17,03 187,06 14,68 15,56 1014 208 156 119 25 x 3 32,54 34,49 23,12 24,51 20,76 22,01 1123 262 191 146 30 x 2 28,89 30,62 19,47 20,64 17,11 18,14 1163 255 187 143 30 x 3 36,19 38,36 26,77 28,37 24,41 25,88 1287 333 231 175 30 x 4 41,49 45,66 34,07 35,77 31,71 33,30 1383 411 275 202 40 x 2 33,76 35,78 24,34 25,80 21,98 23,30 1443 376 255 191 40 x 3 43,49 46,10 34,07 36,11 31,71 33,62 1597 515 332 234 40 x 4 53,22 55,88 43,80 45,99 41,45 43,52 1716 653 384 271 40 x 5 62,96 66,10 53,54 56,21 51,18 53,74 1815 792 430 308 50 x 2 38,62 40,94 29,20 30,95 26,85 28,46 1706 532 339 239 50 x 3 50,79 53,84 41,37 43,85 39,01 41,36 1888 749 416 296 50 x 4 62,96 66,10 53,54 56,21 51,18 53,74 2029 965 488 353 50 x 5 75,12 78,88 65,70 68,99 63,35 66.52 2146 1181 560 401 60 x 3 58,09 61,58 48,67 51,59 43,32 49,09 2165 1034 511 372 60 x 4 72,69 76,33 63,27 66,43 60,92 63,96 2327 1346 615 430 70 x 3 65,39 69,31 55,97 59,33 53,62 56,83 2430 1372 624 434 70 x 4 82,43 86,55 73,01 76,66 70,65 74,18 2612 1715 765 502 70 x 5 99,46 104,43 90,04 94,54 87,68 92,07 2762 1847 906 561 80 x 3 90,55 95,98 69,35 73,52 64,06 67,90 2687 1761 753 496 80 x 4 110,02 115,52 88,42 93,26 83,52 87,70 2887 1959 938 573 80 x 5 129,49 135,96 108,29 113,71 102,99 108,14 3053 2110 1123 643 90 x 3 97,85 103,72 76,66 81,25 71,36 75,64 2935 2002 900 559 90 x 4 119,75 125,74 98,56 103,48 93,26 97,92 3154 2203 1134 647 90 x 5 141,65 148,74 120,46 126,48 115,16 120,92 3335 2373 1368 734 100 x 3 105,15 111,46 83,96 88,99 78,66 83,38 3176 2224 1065 621 100 x 4 129,49 135,96 108,29 113,71 102,99 108,14 3413 2447 1353 728 100 x 5 153,82 161,51 132,63 139,26 127,33 133,69 3609 2636 1642 836 110 x 4 139,22 146,18 118,02 123,93 112,73 118,36 3666 2691 1596 818 110 x 5 165,99 174,29 144,79 152,03 139,49 146,47 3876 2899 1945 948 **Load Bearing classes refers to the clean light between placements, i.e. the
distance between one support and the other.Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
44 meshBearing bar Mesh 44x11 Mesh 44x33 Mesh 44x66 CL1 CL2 CL3 CL4 (mm) Raw (kg/sqm) Galvanized (kg/sqm) Raw (kg/sqm) Galvanized (kg/sqm) Raw (kg/sqm) Galvanized (kg/sqm) Clean light (mm**) Clean light (mm**) Clean light (mm**) Clean light (mm**) 25 x 2 23,31 24,71 13,89 14,73 11,54 12,23 926 179 138 103 25 x 3 27,83 29,50 18,41 19,51 16,05 17,02 1045 221 169 126 30 x 2 25,12 26,63 15,70 16,64 13,35 14,15 1082 216 165 124 30 x 3 30,54 32,37 21,12 22,38 18,76 19,89 1198 274 202 152 30 x 4 35,95 37,75 26,53 27,86 24,18 25,39 1287 332 237 175 40 x 2 28,73 30,45 19,31 20,47 16,96 17,97 1343 306 222 165 40 x 3 35,95 38,11 26,53 28,12 24,18 25,63 1486 410 283 202 40 x 4 43,18 45,33 33,76 35,44 31,40 32,97 1597 513 332 234 40 x 5 50,40 52,92 40,98 43,03 38,62 40,55 1689 617 371 262 50 x 2 32,34 34,28 22,92 24,30 20,57 21,80 1588 423 290 206 50 x 3 41,37 43,85 31,95 33,87 29,59 31,37 1757 584 359 253 50 x 4 50,40 52,92 40,98 43,03 38,62 40,55 1888 746 415 296 50 x 5 59,42 62,40 50,00 52,50 47,65 50,03 1997 908 469 339 60 x 3 46,79 49,59 37,37 39,61 35,01 37,11 2015 798 432 310 60 x 4 57,62 60,50 48,20 50,61 45,84 48,14 2165 1031 510 371 70 x 3 52,20 55,33 42,78 45,35 40,43 42,85 2262 1050 516 376 70 x 4 64,84 68,08 55,42 58,19 53,07 55,72 2430 1367 622 441 70 x 5 77,48 81,35 68,06 71,46 65.70 68,99 2570 1676 728 493 80 x 3 75,48 80,01 54,28 57,54 48,98 51,92 2500 1341 613 437 80 x 4 89,92 94,42 68,73 72,16 63,43 66,60 2687 1755 751 504 80 x 5 104,37 109,58 83,17 87,33 77,87 81,77 2841 1915 889 564 90 x 3 80,89 85,75 59,70 63,28 54,40 5,66 2731 1671 723 491 90 x 4 97,14 102,00 75,95 79,75 70,65 74,18 2935 1999 898 567 90 x 5 113,39 119,06 92,20 96,81 86,90 91,24 3103 2153 1072 635 100 x 3 86,31 91,49 65,12 69,02 59,82 63,41 2956 2018 846 546 100 x 4 104,37 109,58 83,17 87,33 77,87 81,77 3176 2221 1062 631 100 x 5 122,42 128,54 101,23 106,29 95,93 100,72 3358 2392 1277 714 110 x 4 111,59 117,17 90,39 94,91 85,09 89,35 3411 2443 1243 701 110 x 5 131,45 138,02 110,25 115,77 104,95 110,20 3607 2631 1503 801 **Load Bearing classes refers to the clean light between placements, i.e. the
distance between one support and the other.Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
66 meshBearing bar Mesh 66x11 Mesh 66x33 Mesh 66x66 CL1 CL2 CL3 CL4 (mm) Raw (kg/mq) Galvanized (kg/mq) Raw (kg/mq) Galvanized (kg/mq) Raw (kg/mq) Galvanized (kg/mq) Clean light (mm**) Clean light (mm**) Clean light (mm**) Clean light (mm**) 25 x 2 20,57 21,80 11,15 11,82 8,79 9,32 792 162 117 88 25 x 3 23,71 25,13 14,29 15,14 11,93 12,65 926 198 143 108 30 x 2 21,82 23,13 12,40 13,15 10,65 10,65 950 194 140 106 30 x 3 25,59 27,13 16,17 17,14 13,82 14,64 1082 242 172 129 30 x 4 29,36 30,83 19,94 20,94 17,58 18,46 1163 289 199 149 40 x 2 24,34 25,80 14,92 15,81 12,56 13,31 1214 268 187 141 40 x 3 29,36 31,12 19,94 21,14 17,58 18,64 1343 353 232 173 40 x 4 34,38 36,10 24,96 26,21 22,61 23,74 1443 437 276 199 40 x 5 39,41 41,38 29,99 31,49 27,63 29,01 1526 521 320 223 50 x 2 26,85 28,46 17,43 18,47 15,07 15,98 1435 363 237 176 50 x 3 33,13 35,11 23,71 25,13 21,35 22,63 1588 495 306 216 50 x 4 39,41 41,38 29,99 31,49 27,63 29,01 1706 627 374 249 50 x 5 45,69 47,97 36,27 38,08 33,91 35,61 1804 758 419 281 60 x 3 36,90 39,11 27,48 29,12 25,12 26,63 1821 669 389 259 60 x 4 44,43 46,65 35,01 36,76 32,66 34,29 1956 859 453 304 70 x 3 40,66 43,10 31,24 33,12 28,89 30,62 2044 874 458 308 70 x 4 49,46 51,93 40,04 42,04 37,68 39,56 2196 1133 544 369 70 x 5 58,25 61,16 48,83 51,27 46,47 48,80 2322 1391 630 414 80 x 3 62,29 66,03 41,09 43,56 35,80 37,94 2259 1112 537 364 80 x 4 72,34 75,95 51,14 53,70 45,84 48,14 2428 1449 649 424 80 x 5 82,39 86,51 61,19 64,25 55,89 58,69 2567 1787 762 474 90 x 3 66,06 70,02 44,86 47,55 39,56 41,94 2468 1381 627 413 90 x 4 77,36 81,23 56,17 58,98 50,87 53,41 2652 1808 769 477 90 x 5 88,67 93,10 67,47 70,84 62,17 65,28 2804 2012 911 533 100 x 3 69,83 74,02 48,63 51,55 43,33 45,93 2671 1681 727 459 100 x 4 82,39 86,51 61,19 64,25 55,89 58,69 2870 2075 902 530 100 x 5 94,95 99,69 73,75 77,44 68,45 71,87 3035 2235 1078 592 110 x 4 87,41 91,78 66,21 69,53 60,92 63,96 3083 2282 1050 583 110 x 5 101,23 106,29 80,03 84,03 74,73 78,47 3259 2458 1263 654 **Load Bearing classes refers to the clean light between placements, i.e. the
distance between one support and the other.Class 1 – Compact crowd – pedestrian capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category E. Dynamic load 600 daN/m2 Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 2 – Car capacity D.M. of 14 January 2008 – 3.1.4 Table 3.1.II – Category F. Dynamic load 1000 daN applied over an area of 200 x 200 mm with a total ground mass up to 3000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 3 – Light truck capacity Dynamic load 3000 daN applied over an area of 400 x 200 mm with a total ground mass up to 6000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
Class 4 – Articulated lorry capacity Dynamic load 9000 daN applied over an area of 600 x 250 mm with a total ground mass up to 45,000 kg Material: S235JR steel Sigma yield strength = 23.5 daN/mm2 Sigma comparison = 22.38 daN/mm2 Max. deflection = 5 mm Max. deflection = 1/200 Ln
- + Completed projects
-

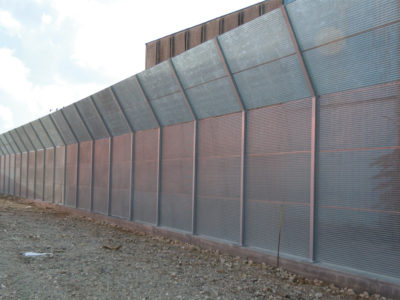

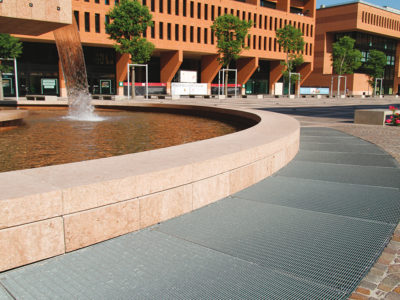

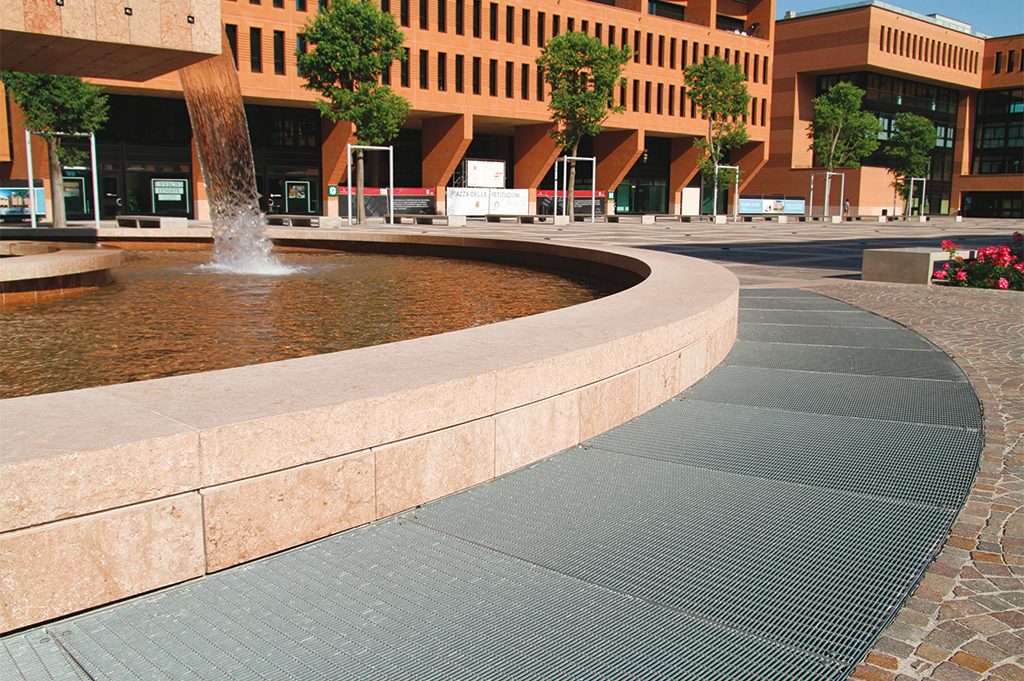

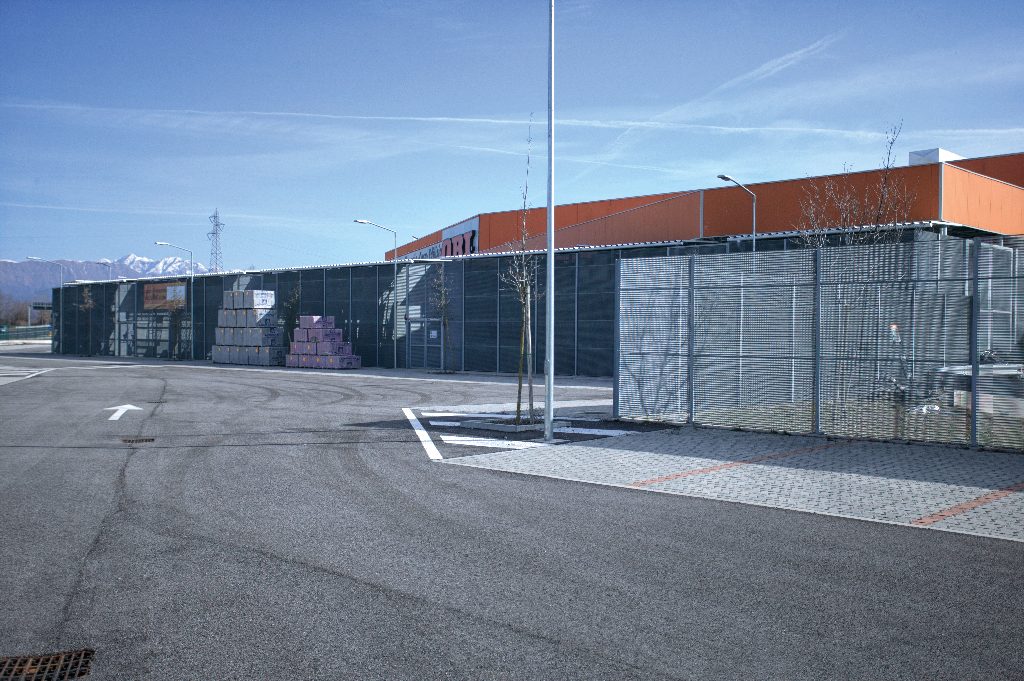

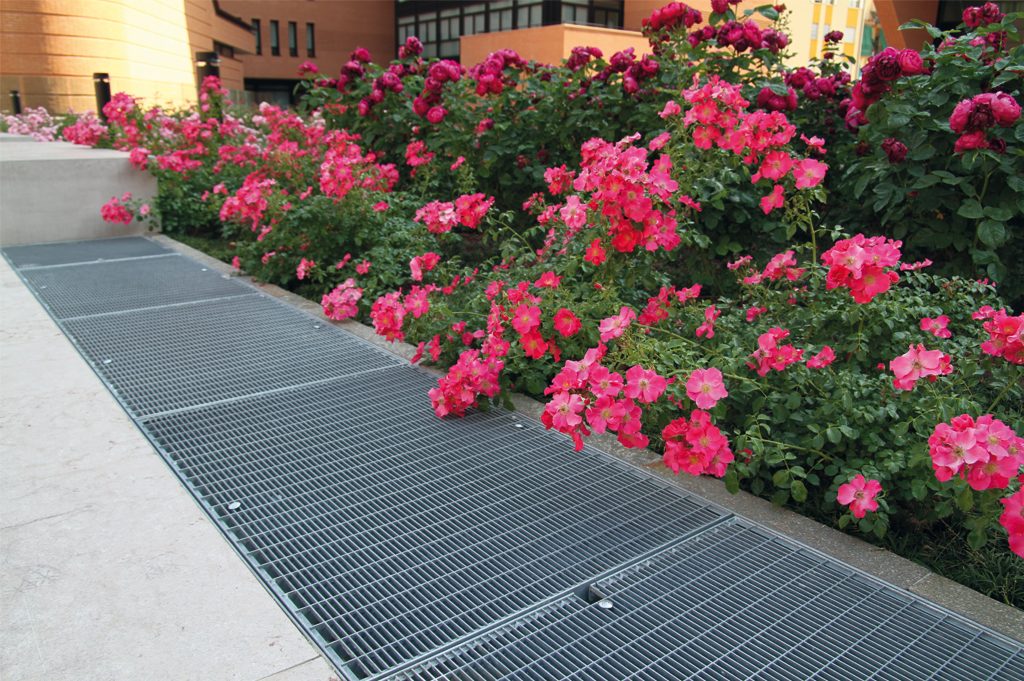

Baldassar Pressed Grating, M. 33 x 11 mm, B.B. 25 x 2 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 66 x 11 mm, B.B. 30 x 2 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 33 x 11 mm, B.B. 25 x 2 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 66 x 11 mm, B.B. 30 x 2 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 66 x 11 mm, B.B. 100 x 3 mm, S235JR steel. Smooth cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
Baldassar Pressed Grating, M. 33 x 11 mm, B.B. 25 x 2 mm, S235JR steel. Cross bar. Banded and hot-dip galvanised according to the UNI EN ISO 1461 standard.
- + Accessories
-
Tank Patented Grating Clamp
1. Traction screw 2. M-shaped clamp 3. Patented grating clamp 4. Standard lock nut 5. Special lock nut
Thanks to its special shape, this fixing system ensures the stability of the grating panels, even when subject to high levels of stress.
The special shaping allows the traction screw to be inserted perpendicularly to the electro-welded grating panel, even when in unachievable positions.
Standard Grating Clamp
Galvanised grating clamp for 11-15 mm mesh
Galvanised grating clamp for 21-25 mm mesh
Galvanised grating clamp for 30-34 mm mesh
Galvanised double grating clamp for 11-15 mm mesh
Galvanised double grating clamp for 21-25 mm mesh
Galvanised double grating clamp for 30-34 mm mesh
Corner Bars
Hot-dip galvanised corner bar (30x30x3/35x35x3/45x45x4) with a 2000 mm/3000 mm anchor
Hot-dip galvanised screw-on corner bar (30x30x3/35x35x3/45x45x4) – 2000 mm/3000 mm
Anti-Theft Kit
Anti-theft kit for electro-welded grates
Anti-theft kit for heel-proof grates
- + Special Processes
-
Shaping
Each building and every situation has different shapes and needs. It is for this reason that Baldassar has established a specialised technical department to be able to create products with special shapes and patterns. Thanks to the shaping process, each grating element can have the most suitable contour for an easier insertion and installation, with minimum waste material.
Banding
As a result of the banding process, the grating panel can have various standard finishes or be designed according to the customer’s design, such as with round, bevelled, square or shaped bands. This deformation process is fully designed and performed inside the Baldassar premises.
Calendering
Thanks to the cutting-edge equipment, our technical department is able to deform the metal profiles according to specific designs, by giving it a circular curvature. The process is carried out in-house; therefore, there is no need to wait for third-parties to be carry out this process.
