Custom Steps and Stairs
Sturdiness, finished and non-slip: these are the characteristics of our steps – which can be produced according to the standard model or reinforced – to design custom-made stairs, suitable for residential, industrial and commercial settings. In fact, the step range includes wider models which are suitable for designing stairs for emergency escape routes, cinemas or shopping centres.
Our grating stairs are designed according to the client’s working drawing or by carrying out on-site surveys and design works. Our technical staff follow the project throughout all its phases, whilst developing the product in compliance with all applicable regulations.

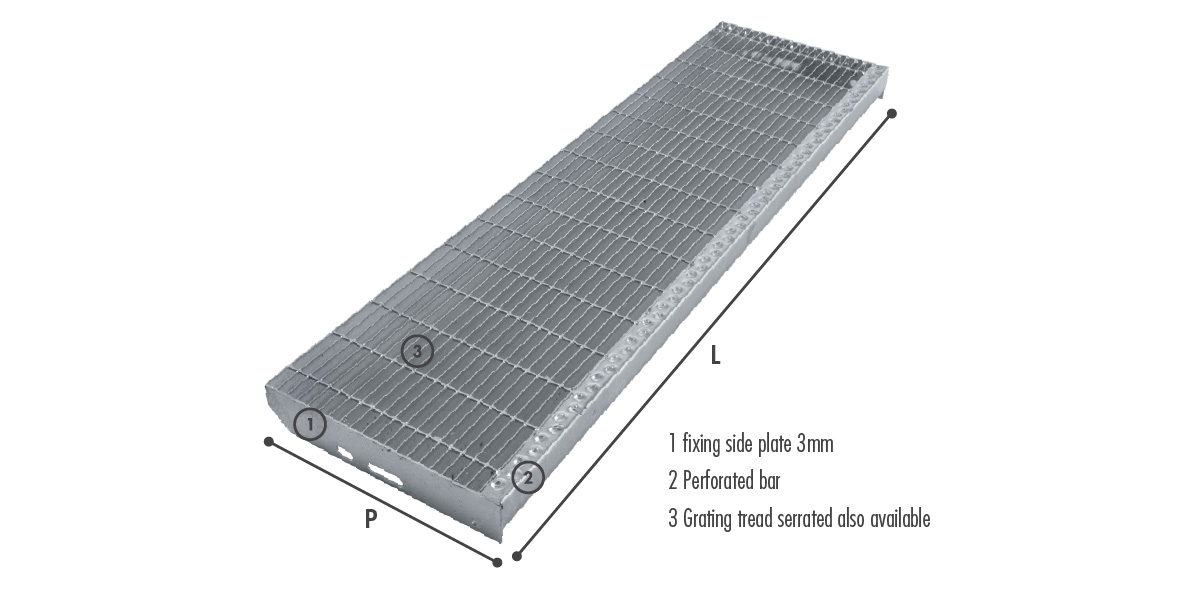

Standard steps with a perforated front bar and fixing side plates. They consist of a flat side plate with a 60 x 30 mm cross-section, complete with pre-drilled fixing holes.
Easy to mount. They are finished with a special non-slip perforated sheet metal and hot dip-galvanised according to the UNI EN ISO 1461 standard.

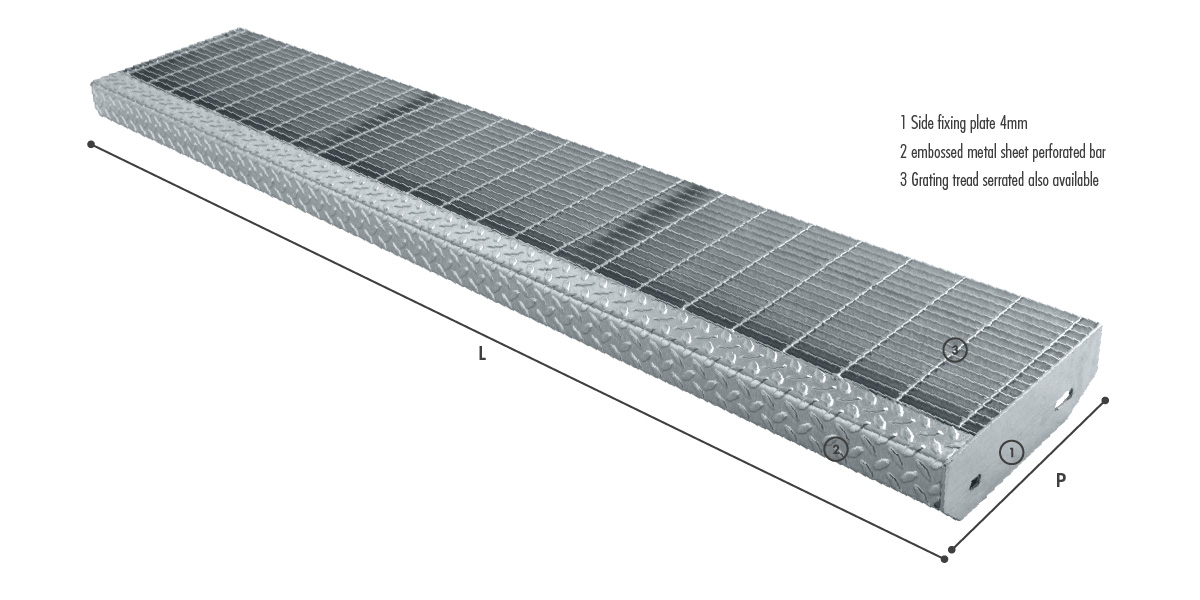

Reinforced steps with a checker sheet metal front bar and fixing side plates.
The uniqueness of our reinforced steps, lies in the fact that they are designed with a special reinforcement system that guarantees the load capacity, without being heavy itself. They are mainly used for escape routes in areas with a large influx of people.
Types of steps
- Standard steps
- Reinforced steps
Advantages
- Can be produced with all available grating meshes
- Made to measure
- Side flanges produced specifically for the requirements
L (mm) | P (mm) | Mesh (mm) | Plate (mm) | Connection | Galvanized (kg/each) | N. pcs / package |
---|---|---|---|---|---|---|
1000 | 308 | 15x76 | 25x2 | ○ | 10,2 | 30 |
1200 | 308 | 15x76 | 25x2 | ○ | 12,1 | 30 |
1000 | 308 | 15x76 | 30x2 | ○ | 11,9 | 30 |
1200 (public use) | 323 | 15x76 | 30x2* | ○ | 14,3 | 30 |
1000 | 308 | 25x76 | 25x2 | ○ | 7,2 | 30 |
900 | 255 | 25x76 | 25x2 | ○ | 5,4 | 30 |
800 | 255 | 25x76 | 25x2 | ○ | 5,1 | 30 |
700 | 255 | 25x76 | 25x2 | ○ | 4,5 | 30 |
600 | 255 | 25x76 | 25x2 | ○ | 3,8 | 30 |
600 | 205 | 25x76 | 25x2 | ○ | 3,2 | 30 |
*Steps suitable for the planned public load according to Standard UNI 11002-2 and D.M. 14/06/1989 236 |
L (mm) | P (mm) | Mesh (mm) | Plate (mm) | Connection | Galvanized (kg/each) | N. pcs / package |
---|---|---|---|---|---|---|
1800 | 323 | 15x76 | 20x2* | ○ | 25,5 | On request |
2400 | 323 | 15x76 | 20x2* | ○ | 46,5 | On request |
*Steps suitable for the planned public load according to Standard UNI 11002-2 and D.M. 14/06/1989 236 |
External stairway made with 800 mm galvanised steps, according to the UNI EN ISO 1461 standard.
Fire escape, made with 1200 mm galvanised heel-proof steps, according to the UNI EN ISO 1461 standard.
Fire escape, made with 1200 mm galvanised heel-proof steps, according to the UNI EN ISO 1461 standard.
Ex. of a TEST performed on the Reinforced Step
Fire escape, made with 1800 mm galvanised reinforced steps, according to the UNI EN ISO 1461 standard.
Fire escape, made with 1800 mm galvanised reinforced steps, according to the UNI EN ISO 1461 standard.
- + Description
-
Custom Steps and Stairs
Sturdiness, finished and non-slip: these are the characteristics of our steps – which can be produced according to the standard model or reinforced – to design custom-made stairs, suitable for residential, industrial and commercial settings. In fact, the step range includes wider models which are suitable for designing stairs for emergency escape routes, cinemas or shopping centres.
Our grating stairs are designed according to the client’s working drawing or by carrying out on-site surveys and design works. Our technical staff follow the project throughout all its phases, whilst developing the product in compliance with all applicable regulations.

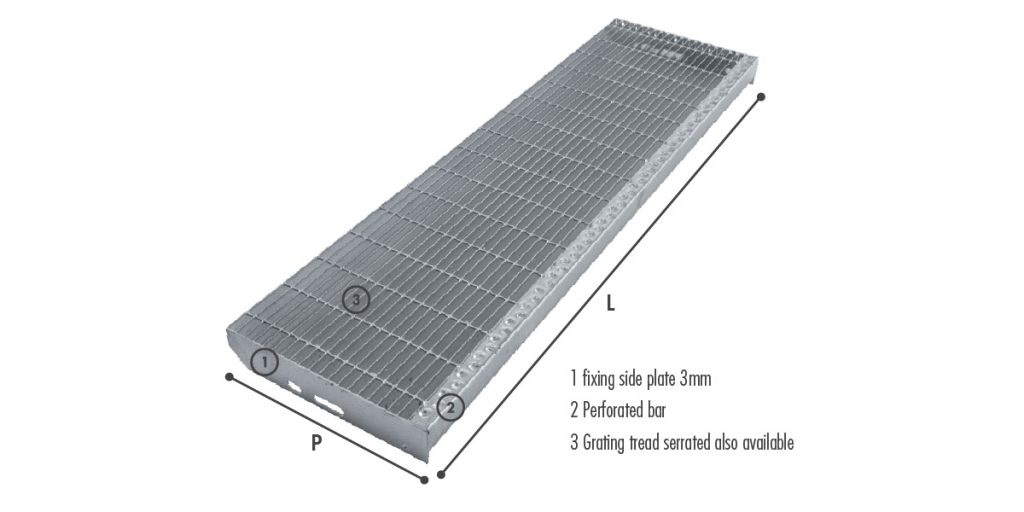

Standard steps with a perforated front bar and fixing side plates. They consist of a flat side plate with a 60 x 30 mm cross-section, complete with pre-drilled fixing holes.
