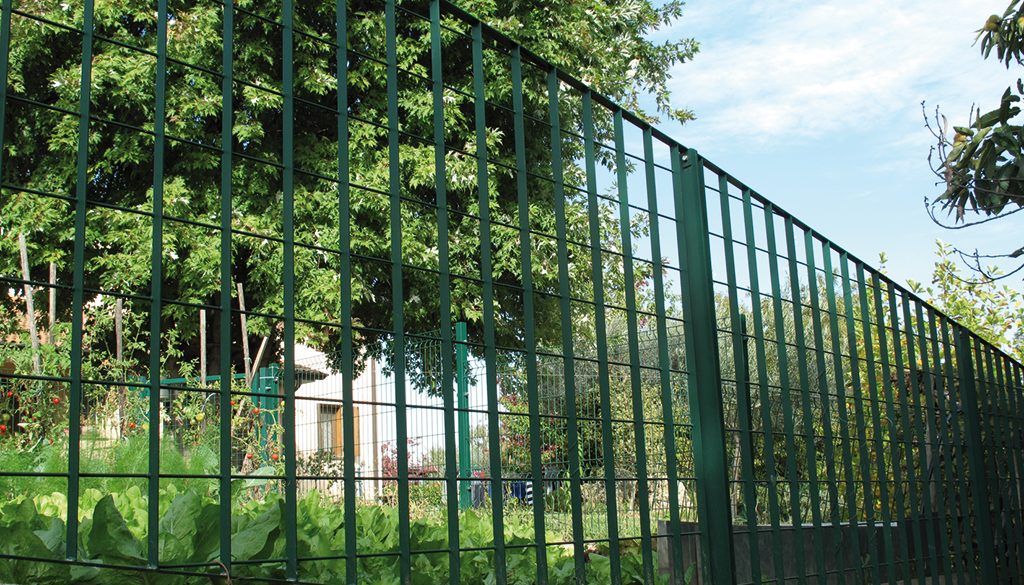

Plusar
Its wide mesh makes it less invasive and suitable for large areas; try it for your home!
Plusar is a grating fence that is suitable for large areas. Its 124 x 132 mm mesh and 25 x 3 mm bearing bar guarantee an excellent performance, in terms of quality and durability. Plusar comprises vertical bearing bars with a rectangular cross-section and connecting round cross-beam bars. The upper and lower band – connected via wire welding – ensure a high resistance and long-lasting quality. The Plusar model can be fitted with hinged or sliding single/double-leaf gates.
Item specifications
The Baldassar Plusar fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel with a 124 x 132 mm mesh, vertical bearing bars with a 25 x 3 mm cross-section, horizontal cross wire with a 5 mm diameter and an upper and lower steel banding bar with a 25 x 4 mm cross-section, manually wire-welded to increase the product’s resistance. It comes with steel posts comprising a 60 x 7 mm cross-section round top bar, in addition to M8 x 30 stainless steel bolts. All the elements are hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.
Material
S 235 JR (UNI EN 10025:1995) steel
Coating
A polyester resin powder coating – suitable for outdoor use – is applied on the post-processing hot dip-galvanised material.
Standard surface treatment
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
Available RAL colours
6005 |
6029 |
9010 |
9005 |
5010 |
1023 |
3002 |
7016 |
Accessories and optional extras
- M8 x 30 round head stainless steel bolt with lock nut
- M8 x 30 stainless steel bolt with hex nut
- Standard or 45° tube compensating clamps
- A third clip to be welded or bolted
- Other posts
Panel | Post | Screw-on post | Concrete-in post | |||
---|---|---|---|---|---|---|
H2 height (mm) | L=1992 weight (kg/each) | Section (mm) | H3 height (mm) | Weight (kg/each) | H1 height (mm) | Weight (kg/each) |
930 | 14,80 | 60 x 7 | 1000 | 4,10 | 1180 | 4,20 |
1064 | 16,50 | 60 x 7 | 1130 | 4,50 | 1315 | 4,70 |
1200 | 18,10 | 60 x 7 | 1265 | 5,00 | 1450 | 5,20 |
1330 | 19,90 | 60 x 7 | 1395 | 5,50 | 1580 | 5,60 |
1460 | 21,60 | 60 x 7 | 1525 | 5,90 | 1710 | 6,10 |
1724 | 24,40 | 60 x 7 | 1790 | 6,90 | 1970 | 7,00 |
1990 | 27,80 | 60 x 7 | 2055 | 7,80 | 2250 | 8,10 |
6005 |
6029 |
9010 |
9005 |
5010 |
1023 |
3002 |
7016 |
Fixing elements
Round head bolt (optional) with lock nut
M8 x 30 round head bolt (optional) with lock nut.
Finish: galvanised/stainless steel.
Bolt (standard) with hex nut
M8 x 30 bolt (standard) with hex nut.
Finish: galvanised/stainless steel.
Compensating clamps
Compensating tube clamp
Compensating tube clamp.
Finish: galvanised.
Compensating clamp with a nut and bolt
Compensating clamp with a nut and bolt for fences.
Finish: galvanised.
45° compensating tube clamp
45° compensating tube clamp with a nut and bolt for fences.
Finish: galvanised.
Third clips and fixing elements
Third clip
Third clip to be bolted to the panels.
Finish: galvanised.
Untreated third clip
Untreated third clip to weld to fence panels over 2000 mm.
Finish: galvanised.
Posts
Screw-on post
Screw-on standard and end post with a 60 x 7 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
Screw-on corner post
Screw-on standard corner post with a 60 x 60 x 6 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
Screw-in post
Screw-in standard post with a 60 x 7 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
Screw-in corner post
Screw-in standard corner post with a 60 x 60 x 6 mm cross-section.
Material: S 235 JR (UNI EN 10025:1995) steel
Surface treatment: hot dip-galvanised post-processing.
Coating: a polyester resin powder coating – suitable for outdoor use – is applied on the galvanised material.
